© 2024

Formats available:
Turtle(opens TTL file in a new tab)

Namespaces

Prefix Namespace
dcterms http://purl.org/dc/terms/
eli http://data.europa.eu/eli/ontology#
eli-dl http://data.europa.eu/eli/eli-draft-legislation-ontology#
ep-document-types https://data.europarl.europa.eu/def/ep-document-types/
ep-org https://data.europarl.europa.eu/org/
ep-roles https://data.europarl.europa.eu/def/ep-roles/
epvoc https://data.europarl.europa.eu/def/epvoc#
ext https://data.europarl.europa.eu/def/external-documents#
file-type http://publications.europa.eu/resource/authority/file-type/
rdf http://www.w3.org/1999/02/22-rdf-syntax-ns#
rdfs http://www.w3.org/2000/01/rdf-schema#
xsd http://www.w3.org/2001/XMLSchema#

Description

This Dataset Description is a subset of the general ELI-EP application profile and it includes classes and properties used in External documents datasets. Descriptions of classes and properties can be found in ELI-EP application profile.

Main Entities

Follow-up of acts

https://data.europarl.europa.eu/def/external-documents#Work-SP

General description

Description

This node shape represents a subset of eli:Work

SPARQL Definition
PREFIX eli: <http://data.europa.eu/eli/ontology#>
SELECT ?this
WHERE {
 ?this eli:work_type <https://data.europarl.europa.eu/def/ep-document-types/ACT_FOLLOWUP>.
}
Identifier or value specification (IRI)
  • Example: https://data.europarl.europa.eu/eli/dl/doc/SP-2022-180-TA-9-2022-0053
  • Conforms to: Work SP Node

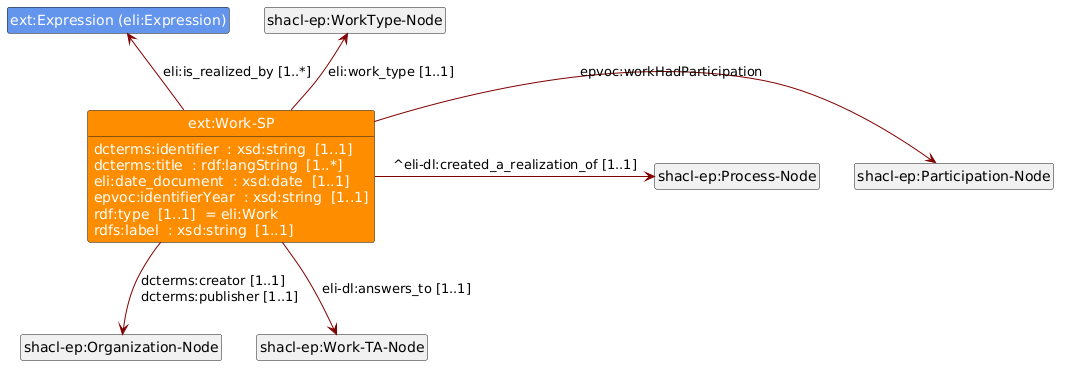

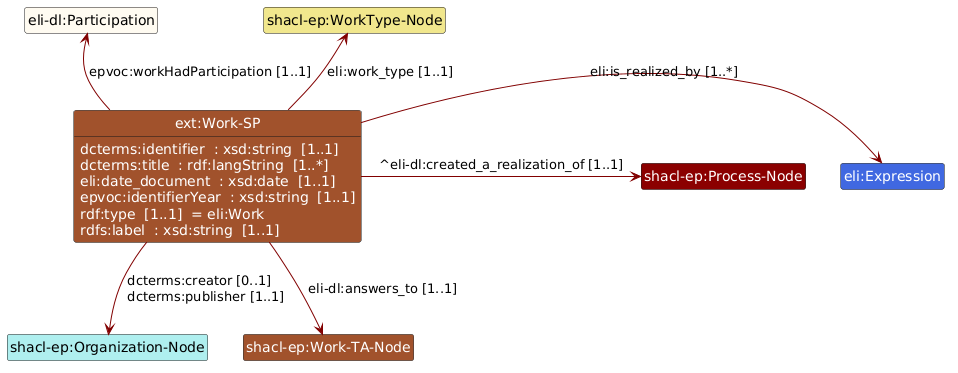

Diagram

ext:Work-SPdcterms:identifier : xsd:string [1..1]dcterms:title : rdf:langString [1..*]eli:date_document : xsd:date [1..1]epvoc:identifierYear : xsd:string [1..1]rdf:type [1..1] = eli:Workrdfs:label : xsd:string [1..1]shacl-ep:WorkType-Nodeshacl-ep:Organization-Nodeeli:Expressioneli-dl:Participationshacl-ep:Work-TA-Nodeshacl-ep:Process-Nodeeli:work_type [1..1]dcterms:creator [0..1]dcterms:publisher [1..1]eli:is_realized_by [1..*]epvoc:workHadParticipation [1..1]eli-dl:answers_to [1..1]^eli-dl:created_a_realization_of [1..1]Diagram for shape ext:Work-SPThis diagram shows a UML model centered around the ext:Work-SP entity
Click diagram to navigate to corresponding section | Download as an image

Properties

⚠ No other properties than the ones listed in the table below are allowed.
Table of properties for Follow-up of acts
Property name URI Expected value Card.
Properties from Follow-up of acts
inverse created a realization of
#
^eli-dl:created_a_realization_of
 Process Node
1..1
creator Organization Node
ep-org:EU_COMMISSION
0..1
➙ Example: https://data.europarl.europa.eu/org/EU_COMMISSION
identifier xsd:string
^SP-(?<year>(19[5-9][0-9]|20[0-9]{2}))-((?<month>0[1-9]|1[0-2])-(?<day>0[1-9]|[12][0-9]|3[01])|(?<number>[0-9]{3,4})(?:-(?<splitNumber>[1-9]))?)-TA-(?<parliamentaryTerm>[0-9]{1,2})-(?<docYear>[0-9]{4})-(?<numberProc>[0-9]{4})$
1..1
➙ Example: SP-2023-459-TA-9-2022-0233
publisher Organization Node
ep-org:EU_PARLIAMENT
1..1
➙ Example: https://data.europarl.europa.eu/org/EU_PARLIAMENT
title rdf:langString
1..*
➙ Example: Follow up to T9-0233/2022
answers_to Work TA Node
1..1
➙ Example: https://data.europarl.europa.eu/eli/dl/doc/TA-9-2022-0233
date document xsd:date
1..1
is realized by Expression
1..*
➙ Example: https://data.europarl.europa.eu/eli/dl/doc/SP-2023-459-TA-9-2022-0233/en
work type WorkType Node
ep-document-types:ACT_FOLLOWUP
1..1
➙ Example: https://data.europarl.europa.eu/def/ep-document-types/ACT_FOLLOWUP
identifier year xsd:string
(19[5-9][0-9]|20[0-9][0-9])
1..1
➙ Example: 2023
stakeholder participant Participation
1..1
➙ Example: https://data.europarl.europa.eu/eli/dl/participation/SP-2011-94-TA-7-2010-0354_COM
type eli:Work
1..1
label xsd:string
1..1
➙ Example: SP(2023)459 T9-0233/2022
Properties from Work SP Node
No specific properties
Properties from Work Node
No specific properties

Expression

https://data.europarl.europa.eu/def/external-documents#Expression

General description

Description

This node shape represents a subset of eli:Expression

Targets
Identifier or value specification (IRI)
  • Example: https://data.europarl.europa.eu/eli/dl/doc/SP-2022-180-TA-9-2022-0053/en
  • Conforms to: Expression Node

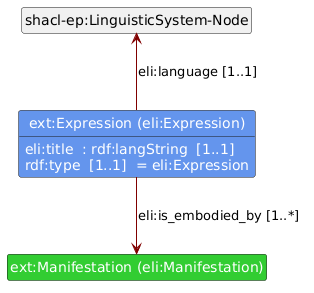

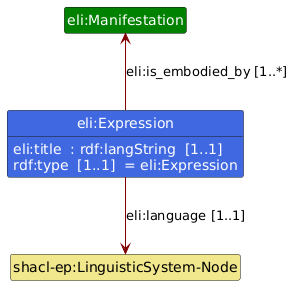

Diagram

eli:Expressioneli:title : rdf:langString [1..1]rdf:type [1..1] = eli:Expressioneli:Manifestationshacl-ep:LinguisticSystem-Nodeeli:is_embodied_by [1..*]eli:language [1..1]Diagram for shape ext:ExpressionThis diagram shows a UML model centered around the ext:Expression entity
Click diagram to navigate to corresponding section | Download as an image

Properties

⚠ No other properties than the ones listed in the table below are allowed.
Table of properties for Expression
Property name URI Expected value Card.
Properties from Expression
is embodied by Manifestation
1..*
➙ Example: https://data.europarl.europa.eu/eli/dl/doc/SP-2023-459-TA-9-2022-0233/pdf
language LinguisticSystem Node
1..1
title rdf:langString
1..1
type eli:Expression
1..1
Properties from Expression Node
No specific properties

Usage

Follow-up of acts is realized by

Manifestation

https://data.europarl.europa.eu/def/external-documents#Manifestation

General description

Description

This node shape represents a subset of eli:Manifestation

Targets
Identifier or value specification (IRI)
  • Example: https://data.europarl.europa.eu/eli/dl/doc/SP-2022-180-TA-9-2022-0053/docx
  • Conforms to: Manifestation Node

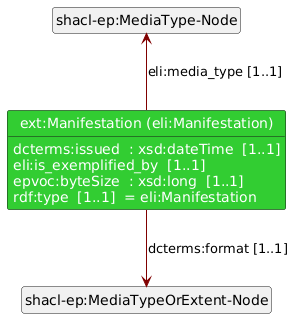

Diagram

eli:Manifestationdcterms:issued : xsd:dateTime [1..1]eli:is_exemplified_by [1..1]epvoc:byteSize : xsd:long [1..1]rdf:type [1..1] = eli:Manifestationshacl-ep:MediaTypeOrExtent-Nodeshacl-ep:MediaType-Nodedcterms:format [1..1]eli:media_type [1..1]Diagram for shape ext:ManifestationThis diagram shows a UML model centered around the ext:Manifestation entity
Click diagram to navigate to corresponding section | Download as an image

Properties

⚠ No other properties than the ones listed in the table below are allowed.
Table of properties for Manifestation
Property name URI Expected value Card.
Properties from Manifestation
format MediaTypeOrExtent Node
file-type:PDF, file-type:DOCX, file-type:DOC
1..1
issued xsd:dateTime
1..1
➙ Example: 2024-01-15T10:12:48.960+0100
is exemplified by IRI
1..1
media type MediaType Node
1..1
byte size xsd:long
1..1
➙ Example: 13399
type eli:Manifestation
1..1
Properties from Manifestation Node
No specific properties

Usage

Expression is embodied by

Participation

https://data.europarl.europa.eu/def/external-documents#Participation

General description

Description

This node shape represents a subset of eli-dl:Participation

Targets
Identifier or value specification (IRI)
  • Example: https://data.europarl.europa.eu/eli/dl/participation/SP-2022-180-TA-9-2022-0053-COM
  • Conforms to: Participation Node

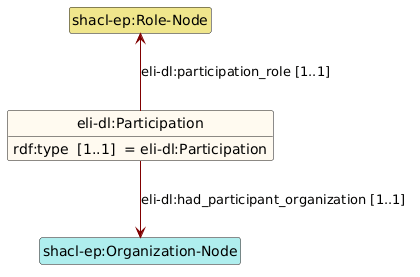

Diagram

eli-dl:Participationrdf:type [1..1] = eli-dl:Participationshacl-ep:Role-Nodeshacl-ep:Organization-Nodeeli-dl:participation_role [1..1]eli-dl:had_participant_organization [1..1]Diagram for shape ext:ParticipationThis diagram shows a UML model centered around the ext:Participation entity
Click diagram to navigate to corresponding section | Download as an image

Properties

⚠ No other properties than the ones listed in the table below are allowed.
Table of properties for Participation
Property name URI Expected value Card.
Properties from Participation
participation organization Organization Node
ep-org:EU_COMMISSION
1..1
participation role Role Node
ep-roles:AUTHOR
1..1
➙ Example: https://data.europarl.europa.eu/def/ep-roles/AUTHOR
type eli-dl:Participation
1..1
Properties from Participation Node
No specific properties

Usage

Follow-up of acts stakeholder participant

Supportive Entities

Organization Node

https://data.europarl.europa.eu/def/shacl-ep#Organization-Node

General description

Identifier or value specification (IRI)
  • URI or value pattern: ^https://data.europarl.europa.eu/org/.+$
  • Example: https://data.europarl.europa.eu/org/AFET

Usage

Follow-up of acts creatorpublisher
Participation participation organization

Process Node

https://data.europarl.europa.eu/def/shacl-ep#Process-Node

General description

Identifier or value specification (IRI)
  • URI or value pattern: ^https://data.europarl.europa.eu/eli/dl/proc/(?<year>[0-9]{4})-(?<numberProc>[0-9]{4}[A-Z]?)$
  • Example: https://data.europarl.europa.eu/eli/dl/proc/2021-0031

Usage

Follow-up of acts inverse created a realization of

Work Node

https://data.europarl.europa.eu/def/shacl-ep#Work-Node

General description

Identifier or value specification (IRI)
  • URI or value pattern: ^https://data.europarl.europa.eu/eli/dl/doc/.+$
  • Example: https://data.europarl.europa.eu/eli/dl/doc/TA-9-2023-0454

Usage

Work TA Node
Work SP Node

Work TA Node

https://data.europarl.europa.eu/def/shacl-ep#Work-TA-Node

General description

Identifier or value specification (IRI)
  • URI or value pattern: ^https://data.europarl.europa.eu/eli/dl/doc/TA-(?<parliamentaryTerm>[0-9]{1,2})-(?<year>[0-9]{4})-(?<docNumber>[0-9]{4})$
  • Example: https://data.europarl.europa.eu/eli/dl/doc/TA-9-2023-0454
  • Conforms to: Work Node

Usage

Follow-up of acts answers_to

Work SP Node

https://data.europarl.europa.eu/def/shacl-ep#Work-SP-Node

General description

Identifier or value specification (IRI)
  • URI or value pattern: ^https://data.europarl.europa.eu/eli/dl/doc/SP-(?<year>(19[5-9][0-9]|20[0-9]{2}))-((?<month>0[1-9]|1[0-2])-(?<day>0[1-9]|[12][0-9]|3[01])|(?<number>[0-9]{3,4})(?:-(?<splitNumber>[1-9]))?)-TA-(?<parliamentaryTerm>[0-9]{1,2})-(?<docYear>[0-9]{4})-(?<docNumbec>[0-9]{4})$
  • Example: https://data.europarl.europa.eu/eli/dl/doc/SP-2025-03-06-TA-10-2024-0061
  • Conforms to: Work Node

Usage

Follow-up of acts

Expression Node

https://data.europarl.europa.eu/def/shacl-ep#Expression-Node

General description

Identifier or value specification (IRI)
  • URI or value pattern: ^https://data.europarl.europa.eu/eli/dl/doc/(?<reference>[A-Za-z0-9\-]+)/(?<lang>[a-z]{2})$
  • Example: https://data.europarl.europa.eu/eli/dl/doc/DCI-197491-2024-07-19-123456/en

Usage

Expression

Manifestation Node

https://data.europarl.europa.eu/def/shacl-ep#Manifestation-Node

General description

Identifier or value specification (IRI)
  • URI or value pattern: ^https://data.europarl.europa.eu/eli/dl/doc/(?<reference>[A-Za-z0-9\-]+)/(?<lang>[a-z]{2})/(?<format>(doc|docx|pdf|epub|xml|rtf))$
  • Example: https://data.europarl.europa.eu/eli/dl/doc/DCI-197491-2024-07-19-123456/en/pdf

Usage

Manifestation

Participation Node

https://data.europarl.europa.eu/def/shacl-ep#Participation-Node

General description

Identifier or value specification (IRI)
  • URI or value pattern: ^https://data.europarl.europa.eu/eli/dl/participation/(?<reference>[A-Za-z0-9\-]+)$
  • Example: https://data.europarl.europa.eu/eli/dl/participation/DCI-260035-2024-10-14-406371-AUTHOR

Usage

Participation

Role Node

https://data.europarl.europa.eu/def/shacl-ep#Role-Node

General description

Identifier or value specification (IRI)
  • URI or value pattern: ^https://data.europarl.europa.eu/def/ep-roles/.+$
  • Example: https://data.europarl.europa.eu/def/ep-roles/AUTHOR

Usage

Participation participation role

WorkType Node

https://data.europarl.europa.eu/def/shacl-ep#WorkType-Node

General description

Identifier or value specification (IRI)
  • URI or value pattern: ^https://data.europarl.europa.eu/def/ep-document-types/.+$
  • Example: https://data.europarl.europa.eu/def/ep-document-types/TEXT_ADOPTED

Usage

Follow-up of acts work type

LinguisticSystem Node

https://data.europarl.europa.eu/def/shacl-ep#LinguisticSystem-Node

General description

Identifier or value specification (IRI)
  • URI or value pattern: ^http://publications.europa.eu/resource/authority/language/[A-Z]+$
  • Example: http://publications.europa.eu/resource/authority/language/FRA

Usage

Expression language

MediaTypeOrExtent Node

https://data.europarl.europa.eu/def/shacl-ep#MediaTypeOrExtent-Node

General description

Identifier or value specification (IRI)
  • URI or value pattern: ^http://publications.europa.eu/resource/authority/file-type/.+$
  • Example: http://publications.europa.eu/resource/authority/file-type/PDF

Usage

Manifestation format

MediaType Node

https://data.europarl.europa.eu/def/shacl-ep#MediaType-Node

General description

Identifier or value specification (IRI)
  • URI or value pattern: ^https://www.iana.org/assignments/media-types/application/.+$
  • Example: https://www.iana.org/assignments/media-types/application/pdf

Usage

Manifestation media type

Release notes

2.5.0 - 2026-09-02

'2.5.0 - 2026-03-18

2.5.0 - 2025-09-09 - 2025-07-23

2.1.0 - 2025-06-16

2.1.0 - 2024-03-21
